Behringer X32 COMPACT

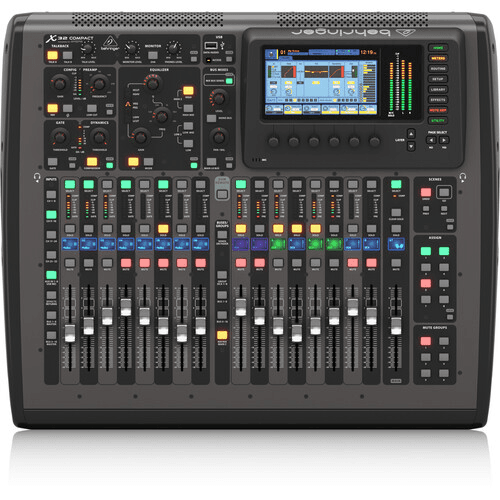

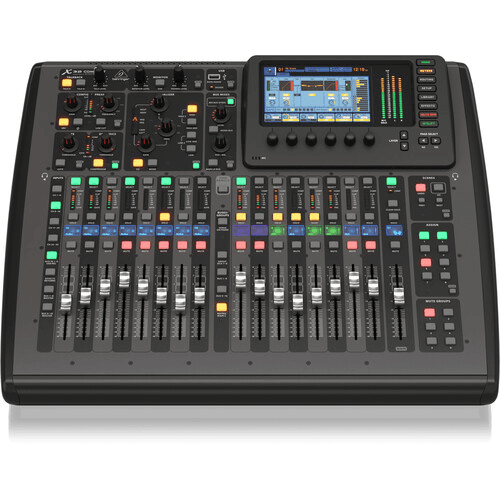

Behringer X32 COMPACT – Digital Mixing Console

Ideal for professional live and studio applications, the Behringer X32 COMPACT is a 40-input / 25-output digital mixer with a compact design and full-featured performance. It includes 16 fully programmable MIDAS-designed mic preamps, high-quality processing, and flexible connectivity for live sound, recording, and broadcast.

Technical Specifications

Max I/O Capacity: 40x Input / 25x Output

Analog Input Channels: 16

Mic Preamps: 16

Analog Output Channels: 8

Faders: 17x 3.9" / 100 mm Motorized (Touch Sensitive)

Display: 7" LCD (Daylight-viewable)

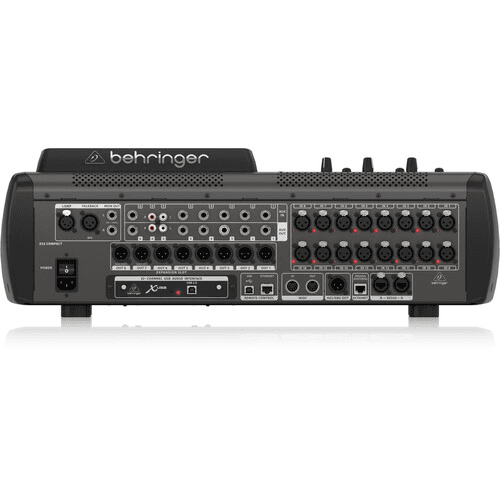

Analog Inputs

• 16x XLR 3-Pin Balanced Mic/Line Inputs
• 1x XLR 3-Pin Balanced Mic/Talkback Input
• 1x Stereo RCA Coaxial Unbalanced Aux Input
• 6x 1/4" TRS Aux Return

Analog Outputs

• 8x XLR 3-Pin Main/Bus Outputs
• 1x Stereo RCA Aux Output (1 Stereo Pair)
• 2x XLR 3-Pin Stereo Control Room/Monitor Outputs (1 Stereo Pair)
• 2x 1/4" TRS Stereo Control Room/Monitor Outputs
• 6x 1/4" TRS Aux Outputs
• 2x 1/4" TRS Headphone Outputs

Digital & USB I/O

• 1x RJ45 Ethernet (Control, 1 Gb/s)
• 1x RJ45 Ultranet (I/O)
• 2x RJ45 AES50 (I/O)
• 1x XLR AES3 Output
• 1x USB-B 2.0 (Control)
• 1x USB-B 2.0 (Audio Playback, Multitrack Record)
• USB Capacity: 32x Input / 32x Output

MIDI I/O: 1x 5-Pin In, 1x 5-Pin Out

Phantom Power: +48 V (Selectable per Input)

Performance

• Frequency Response: 10 Hz – 22 kHz (+0/-1 dB @ 48 kHz)
• Max Input Level: Mic +23 dBu / Line +16 dBu
• Dynamic Range: 106 dB (Input to Output, Unity Gain)
• THD+N: 0.006% at +20 dB Gain (0 dBu)
• Noise Floor: -87 dB A-weighted

Signal Processing

• Compressor, Limiter, Gate, Soft Limiter per Channel
• 6-Band EQ per Channel
• 31-Band Graphic EQ (1/3 Octave)
• 8x DCA Group, 6x Mute Group
• 25x Stereo Bus

Compatibility

• macOS / Windows (via USB)
• Android / iOS (Apps: X32-Mix, X32-Q)
• Remote Control, Adjust Settings, Setup Functions
• USB Drive Recording: up to 32 Multitrack Channels
