Shure QLXD24/SM58

Shure QLXD24/SM58 Digital Wireless Microphone System

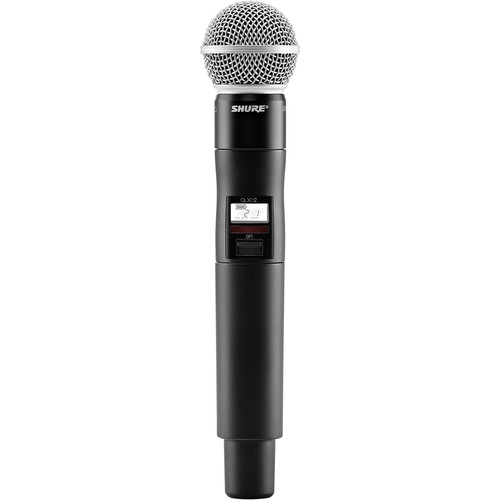

The QLXD24/SM58 system includes the QLXD2 handheld transmitter with an interchangeable capsule design, equipped with the legendary SM58 cardioid dynamic capsule, an industry standard for vocalists and presenters. The lightweight transmitter offers up to 9 hours of operation on two AA batteries, selectable 1/10 mW RF power, and a transmission range of up to 330 ft.

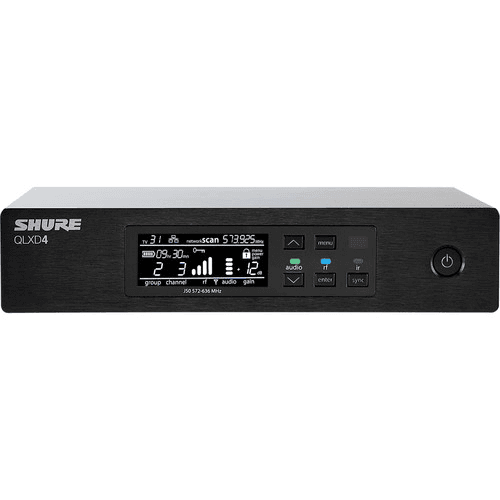

The QLXD4 receiver provides audio/RF meters, 60 dB gain control, mic/line XLR and 1/4" outputs. A large LCD screen and intuitive interface make adjustments fast even in low light. Additional features include automatic frequency scanning, IR sync, and internal limiting.

Specifications

System

• Wireless technology: Digital UHF
• Frequency band: G50 (470–534 MHz)
• RF channels: 2560
• RF scanning: Auto-Scan
• Operating range: 330 ft / 100 m
• Latency: < 2.9 ms
• Encryption: AES-256

Transmitter

• RF power output: 1/10 mW
• Antenna: Fixed 1/4-wave
• Gain range: 0–21 dB (3 dB steps)
• Frequency response: 30 Hz–20 kHz
• Sync method: IR
• Display: Backlit LCD
• Battery: 2×AA or SB900A (optional)
• Battery life: 9 hours

Microphone

• Type: Handheld, SM58 capsule
• Polar pattern: Cardioid
• Frequency response: 50 Hz–15 kHz
• Max SPL: 146 dB
• Sensitivity: –54.5 dBV/Pa
• Color: Silver

Physical

• Housing: Aluminum
• Dimensions: 51 × 256 mm
• Weight: 347 g
