Novation Circuit Tracks – Standalone Groovebox

Overview

Novation Circuit Tracks is a standalone groovebox designed for music creation at home, on the road, or anywhere you want to work without being tethered to a DAW. Its screen-free, tactile workflow keeps the focus on creativity, allowing ideas, sketches, and live performances to develop naturally.

With two synth tracks, four sample-based drum tracks, and two MIDI tracks for sequencing external gear, Circuit Tracks functions as both a powerful internal sound engine and a central control hub for external instruments. Pattern-based sequencing, Scene construction, and fast arrangement tools allow full tracks to be built at the speed of inspiration.

Features

• Two synth tracks for melodic and harmonic composition
• Four sample-based drum tracks for rhythm programming
• Two MIDI tracks for sequencing external synthesizers and drum machines
• Pattern-based workflow for rapid idea development
• Scene-based structure for building dynamic arrangements
• Send effects including Reverb, Delay, and Side Chain
• Standalone operation with integrated rechargeable battery

Technical Specifications

Creative Tools

• 2 6-voice polyphonic synth tracks
• 2 6-voice polyphonic MIDI tracks
• 4 sample-based drum tracks
• Scale mode - with 16 built-in scales
• Send FX: Reverb/Delay/Side Chain
• Side Chain compressor

Controls and Pads

• 32 RGB backlit velocity sensitive pads
• 24 endless encoders with RGB LEDs
• 28 RGB backlit buttons
• Master volume pot
• Master filter pot with centre detent
• Power button with charge status LED

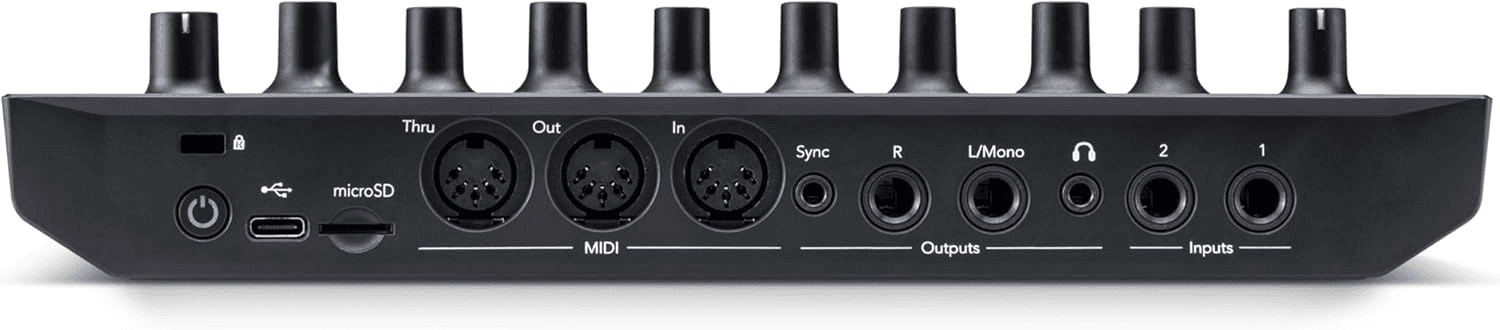

Connectivity

• USB-C socket
• 5-pin MIDI In socket
• 5-pin MIDI Out socket
• 5-pin MIDI Thru socket
• 3.5mm sync out
• MicroSD card slot
• Kensington security slot

Audio I/O

• 2 mono input 1/4" jack sockets
• L&R output 1/4" jack sockets
• Headphone output 3.5mm jack socket

Dimensions

• Length: 240mm
• Depth: 210mm
• Height: 45mm
• Weight: 0.78kg

Power and Battery

• Built-in rechargeable lithium-ion battery
• Four hours of battery life
• USB-C for charging and bus power
• Internal LiPo battery safety data sheet

Storage and Capacity

With microSD card:

• 32 packs

Without microSD card:

• 1 pack
• microSD card not included

What's in the Box

• Circuit Tracks
• USB-A power adapter
• 1.5m USB type C-to-A cable
