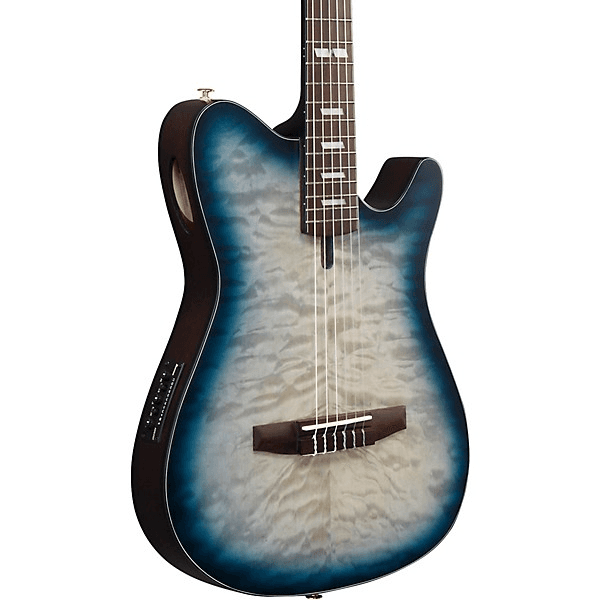

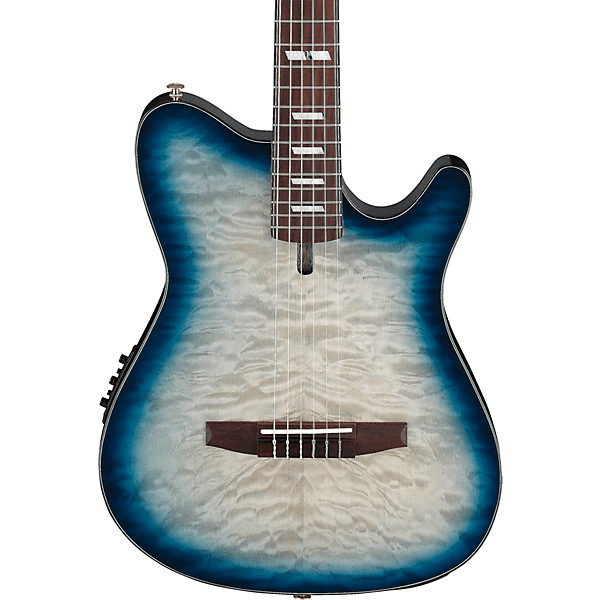

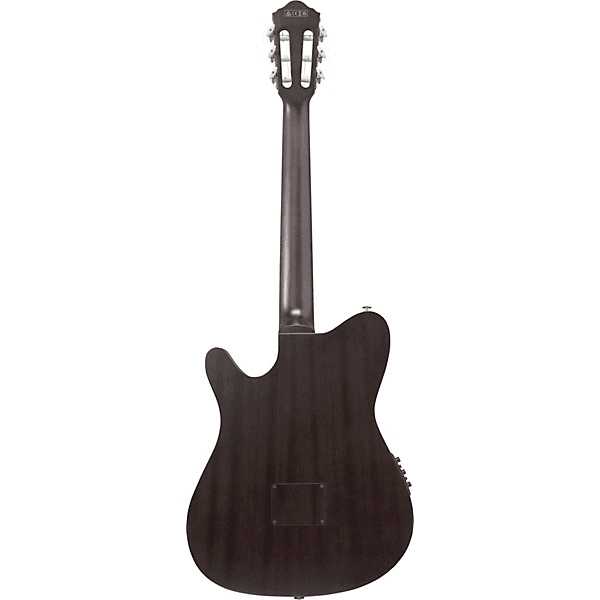

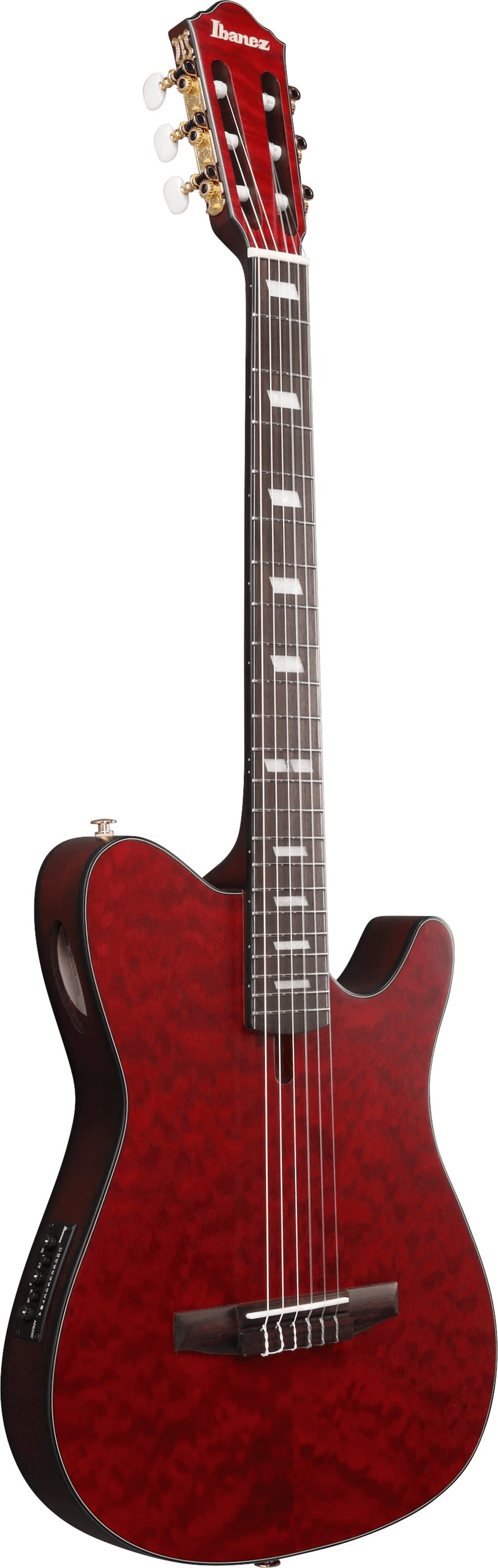

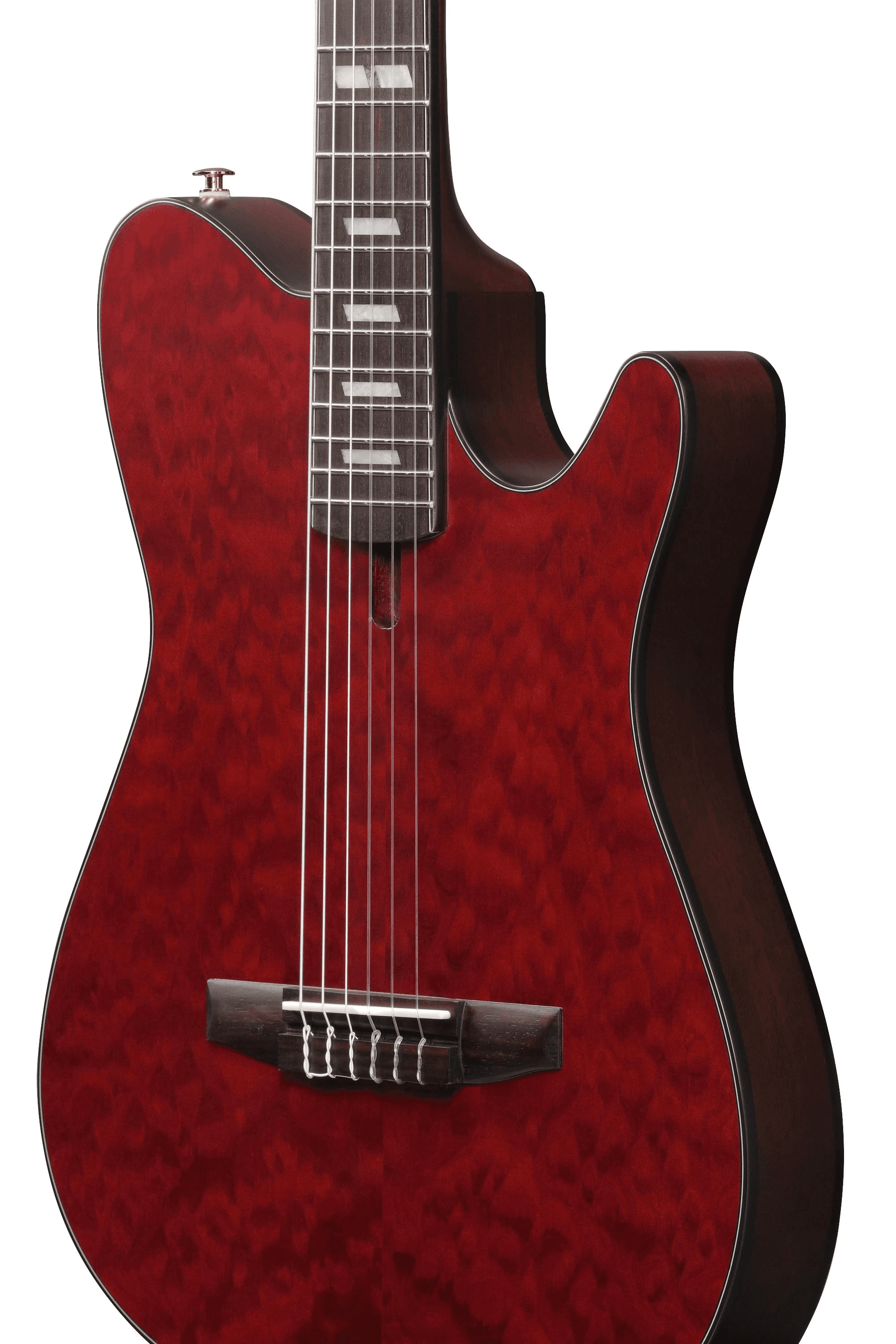

Ibanez FRH20QMN-WR – Electric Acoustic Guitar

Description

The Ibanez FRH20QMN-WR is a modern acoustic-electric guitar from the FRH series, combining the natural tonal character of nylon strings with the comfortable playing feel of an electric guitar. Its compact and thin Modified FR Hollow Body construction, Quilt Maple top, Sapele back and sides, Nyatoh neck and Rosewood fretboard deliver a balanced, warm and clear acoustic tone.

The absence of a conventional front soundhole, combined with the Side Sound Port, helps reduce feedback during amplified performance while directing the acoustic sound more naturally toward the player. The 46mm nut width and 400mmR fretboard radius provide a comfortable and responsive playing feel.

The Ibanez Undersaddle pickup and AEQ210T preamp system effectively transfer the instrument's acoustic character to stage and studio systems. Volume, Bass and Treble controls, an onboard tuner and Phase function provide extensive control for amplified performance.

Features

• FRH series
• Modified FR Hollow Body
• Quilt Maple top
• Sapele back and sides
• Fan bracing

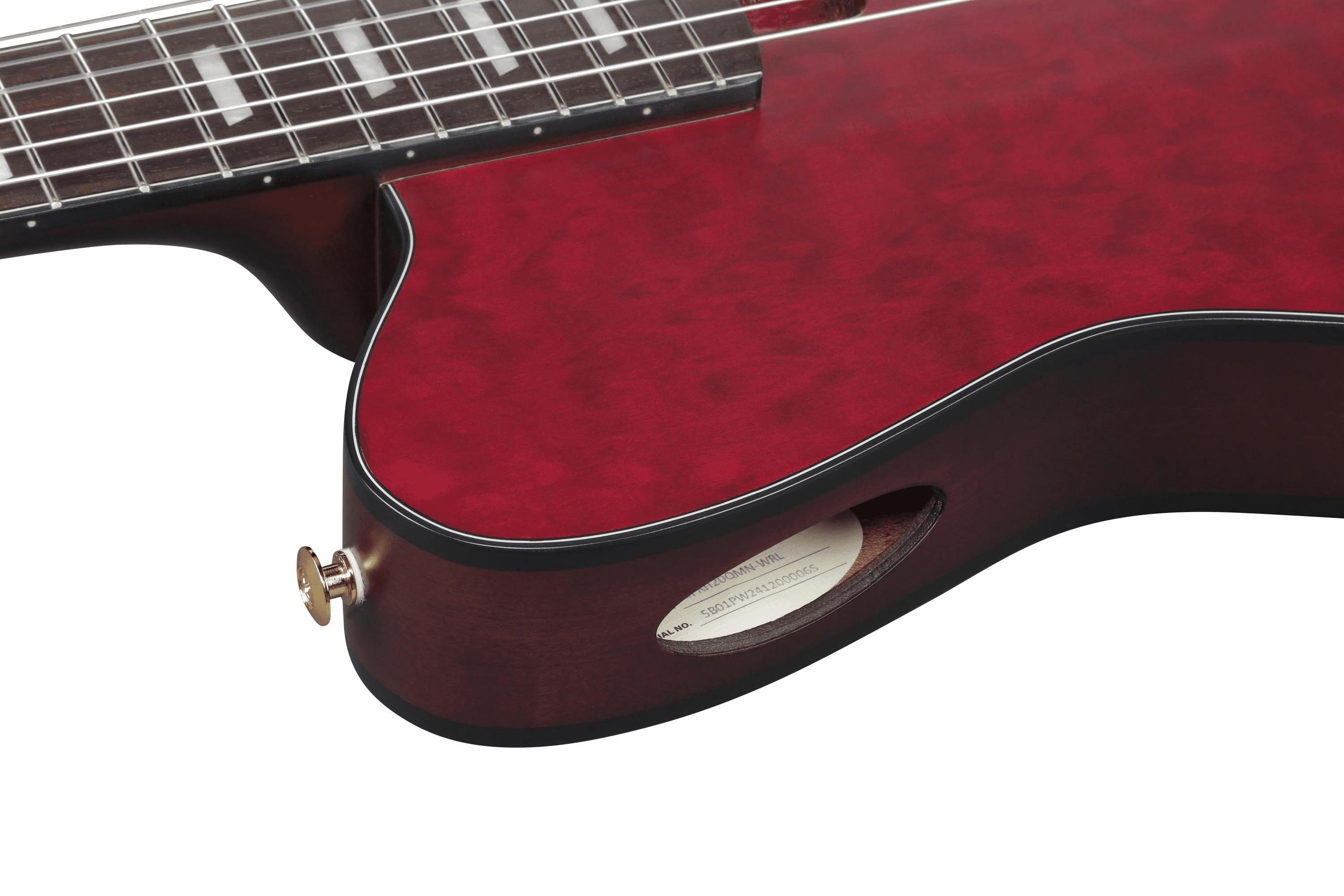

• Side Sound Port
• No conventional front soundhole
• Nyatoh neck
• C Shape neck profile
• Set-in neck joint
• Rosewood fretboard
• Acrylic and Abalone block inlay
• Bone nut
• Rosewood bridge
• Bone saddle

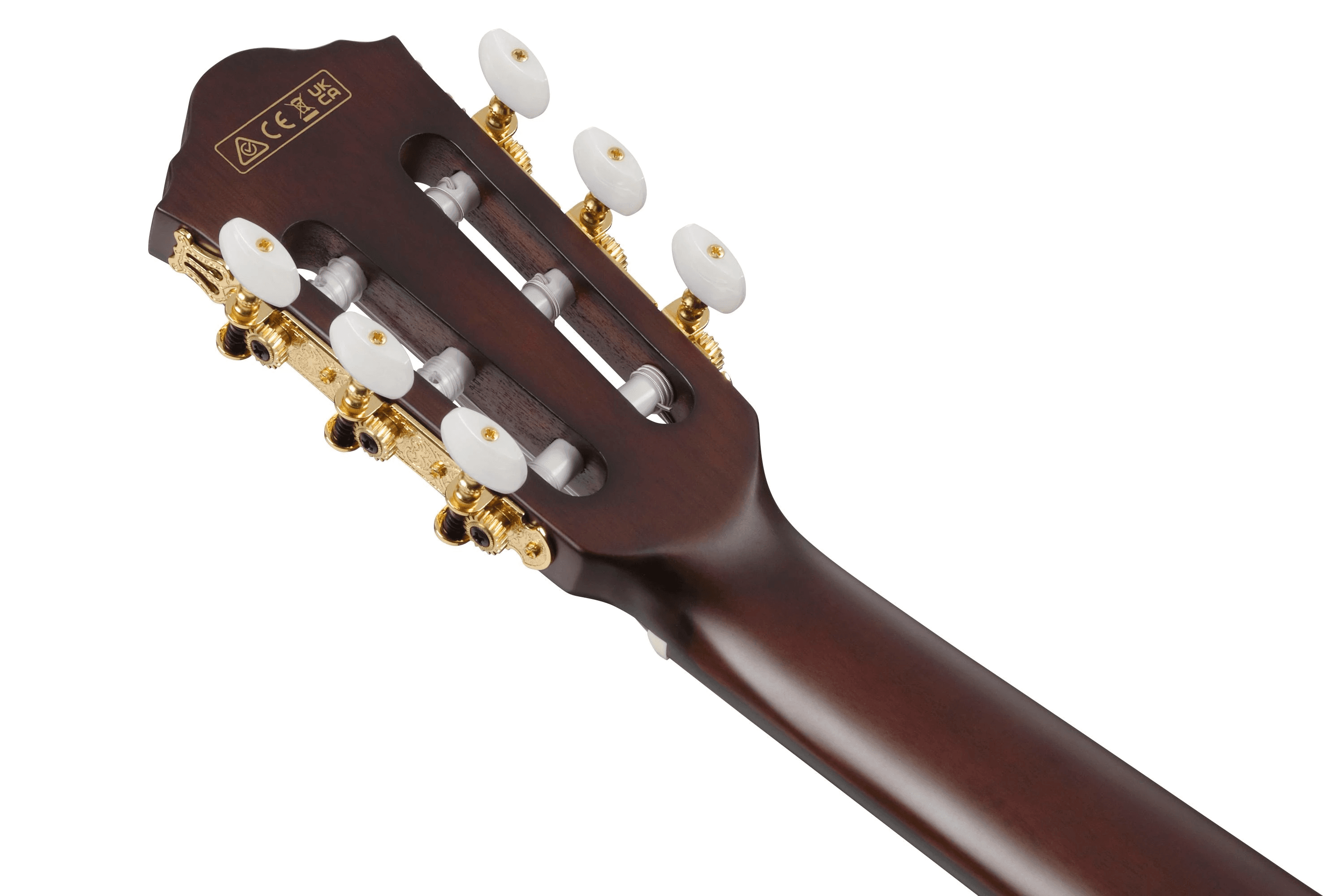

• Gold Classical tuners
• 22 frets
• Ibanez Undersaddle pickup

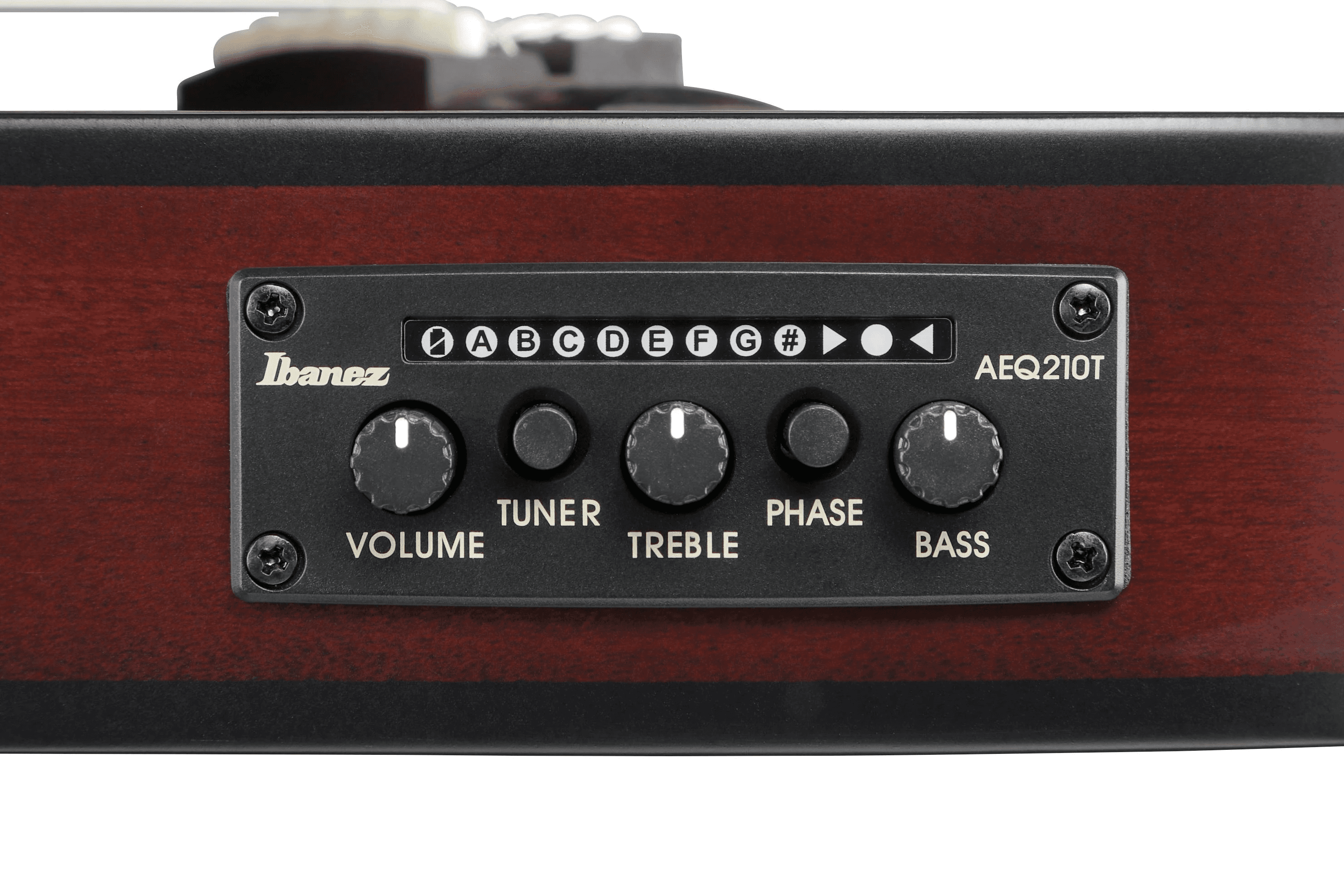

• Ibanez AEQ210T preamp
• Onboard tuner
• Volume, Bass and Treble controls
• Phase ON/OFF switch
• 1/4" output
• 46mm nut width
• 400mmR fretboard radius
• Wine Red Low Gloss (WR) finish
• 6 strings
• Right-handed construction

Technical Specifications

• Model: FRH20QMN-WR
• Series: FRH
• Number of strings: 6
• Body shape: Modified FR Hollow Body
• Top: Quilt Maple
• Back and sides: Sapele
• Bracing: Fan bracing
• Sound port: Side Sound Port
• Neck: Nyatoh
• Neck profile: C Shape
• Neck joint: Set-in
• Neck joint position: 16th fret
• Fretboard: Rosewood
• Fretboard radius: 400mm / 15.75"
• Number of frets: 22
• Inlay: Acrylic and Abalone block
• Nut: Bone
• Nut width: 46mm
• Fretboard width at 14F: 58mm
• Neck thickness at 1F: 21mm
• Neck thickness at 7F: 22mm
• Scale length: 648mm / 25.5"
• Bridge: Rosewood
• Saddle: Bone saddle
• String spacing: 11.6mm
• Pickup: Ibanez Undersaddle
• Preamp: Ibanez AEQ210T Preamp with onboard tuner
• Controls: Volume, Bass, Treble
• Additional controls: Tuner ON/OFF switch, Phase ON/OFF switch
• Output: 1/4" output
• Tuners: Gold Classical tuners
• Strings: Nylon
• String gauge: .028/.032/.040/.028W/.035W/.044W
• Factory tuning: 1E2B3G4D5A6E
• Finish: Wine Red Low Gloss
• Made in: Indonesia
• Recommended bag: IGB540-BK
• Additional included item: Innensechskantschlüssel
