SQUIER Affinity Series Strat Maple Fing, White Pickg, Olympic White – Electric Guitar

Product Overview

The SQUIER Affinity Series® Stratocaster® combines the classic Stratocaster® design with modern playing comfort and versatile tonal capabilities. The thin and lightweight Poplar body, comfortable “C” Shape Maple neck and Maple fingerboard provide a comfortable playing experience during extended sessions.

Three Ceramic Single-Coil pickups and the 5-Position Blade switching system provide a broad range of tonal options. The 2-Point Synchronized Tremolo with Block Saddles allows expressive and smooth vibrato effects, while the Sealed Die-Cast with Split Shafts tuning machines provide precise tuning and convenient string changes.

Features

• Stratocaster® body shape
• Thin and lightweight Poplar body
• Maple neck and Maple fingerboard
• “C” Shape neck profile
• Three Ceramic Single-Coil pickups
• SSS pickup configuration
• 5-Position Blade switching
• 2-Point Synchronized Tremolo with Block Saddles
• Sealed Die-Cast with Split Shafts tuning machines
• 3-Ply White pickguard
• Chrome hardware
• Olympic White color
• 21 Medium Jumbo frets
• 25.5" (648 mm) scale length

Technical Specifications

General

• Color: Olympic White
• Orientation: Right-Hand
• Product Name: Affinity Series® Stratocaster®, Maple Fingerboard, White Pickguard, Olympic White
• Series: Affinity Series®
• Style: 3 Single-Coil

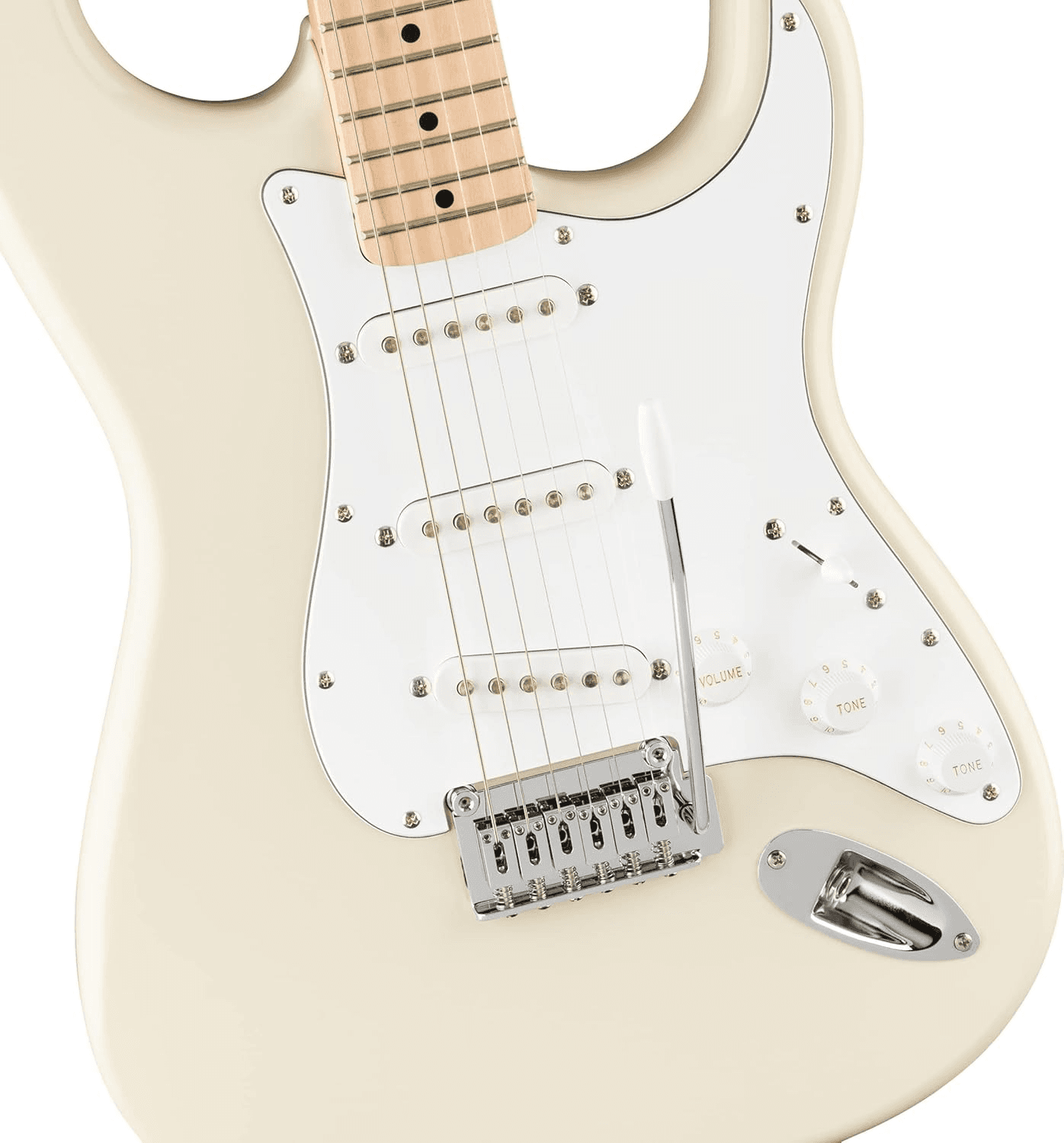

Body

• Body: Poplar
• Body Finish: Gloss Polyurethane
• Body Material: Poplar
• Body Shape: Stratocaster®

Electronics

• Bridge Pickup: Ceramic Single-Coil
• Middle Pickup: Ceramic Single-Coil
• Neck Pickup: Ceramic Single-Coil
• Pickup Configuration: SSS
• Controls: Master Volume, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)
• Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

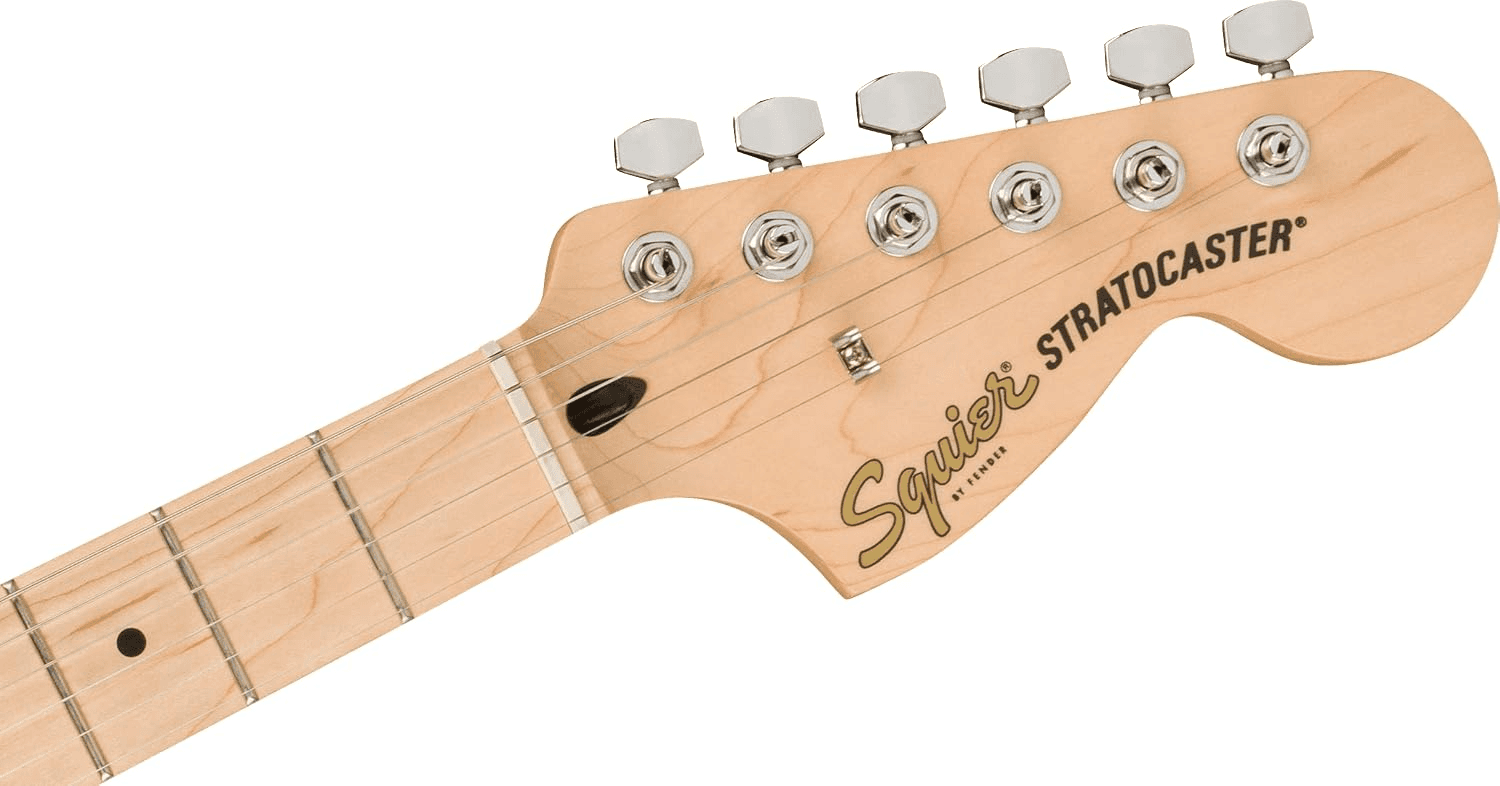

Neck

• Fingerboard Material: Maple
• Fingerboard Radius: 9.5" (241 mm)
• Neck Construction: Bolt-On
• Neck Finish: Satin Urethane with Gloss Urethane Headstock Face
• Neck Material: Maple
• Neck Shape: "C" Shape
• Number of Frets: 21
• Fret Size: Medium Jumbo
• Nut Material: Synthetic Bone
• Nut Width: 1.650" (42 mm)
• Position Inlays: Black Dot
• Side Dots: Black
• String Nut: Synthetic Bone
• Truss Rod: Head Adjust

Hardware

• Bridge: 2-Point Synchronized Tremolo with Block Saddles
• Control Knobs: White Plastic
• Hardware Finish: Chrome
• Neck Plate: 4-Bolt Squier®
• Pickguard: 3-Ply White
• Pickup Covers: White
• Strap Buttons: Standard
• String Trees: Dual-Wing
• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Switch Tip: White
• Tremolo Arm: Standard
• Tuning Machines: Sealed Die-Cast with Split Shafts

Measurements

• Scale Length: 25.5" (648 mm)
