Epiphone J-200 Studio EC – Acoustic-Electric Guitar

Features

The Epiphone J-200 Studio EC – Natural combines classic J-200 aesthetics with modern functionality, powerful acoustic projection and stage-ready electronics in a Super Jumbo acoustic-electric guitar. Inspired by the legendary Gibson SJ-200, this version features a cutaway for easier access to the upper frets. The solid spruce top provides a responsive, balanced and expressive tonal response, while the layered maple body contributes articulation and broad projection. G

Gibson

The mahogany neck features a 1960s SlimTaper D profile for comfortable and smooth playability. The rosewood fingerboard, 304.8 mm (12") radius and 20 standard frets provide a balanced configuration for chords, rhythm playing and melodic passages. The glued-in Set Neck with Tapered Dovetail Joint construction provides a secure and resonant connection between the neck and body. G

Gibson

Powerful Super Jumbo Projection

The solid spruce top provides a broad dynamic range and clear tonal response. The layered maple back and sides complement the sound with articulation and projection. The Super Jumbo body shape creates an ideal platform for powerful strumming, rhythm playing and full chord voicings.

Fishman Electronics System

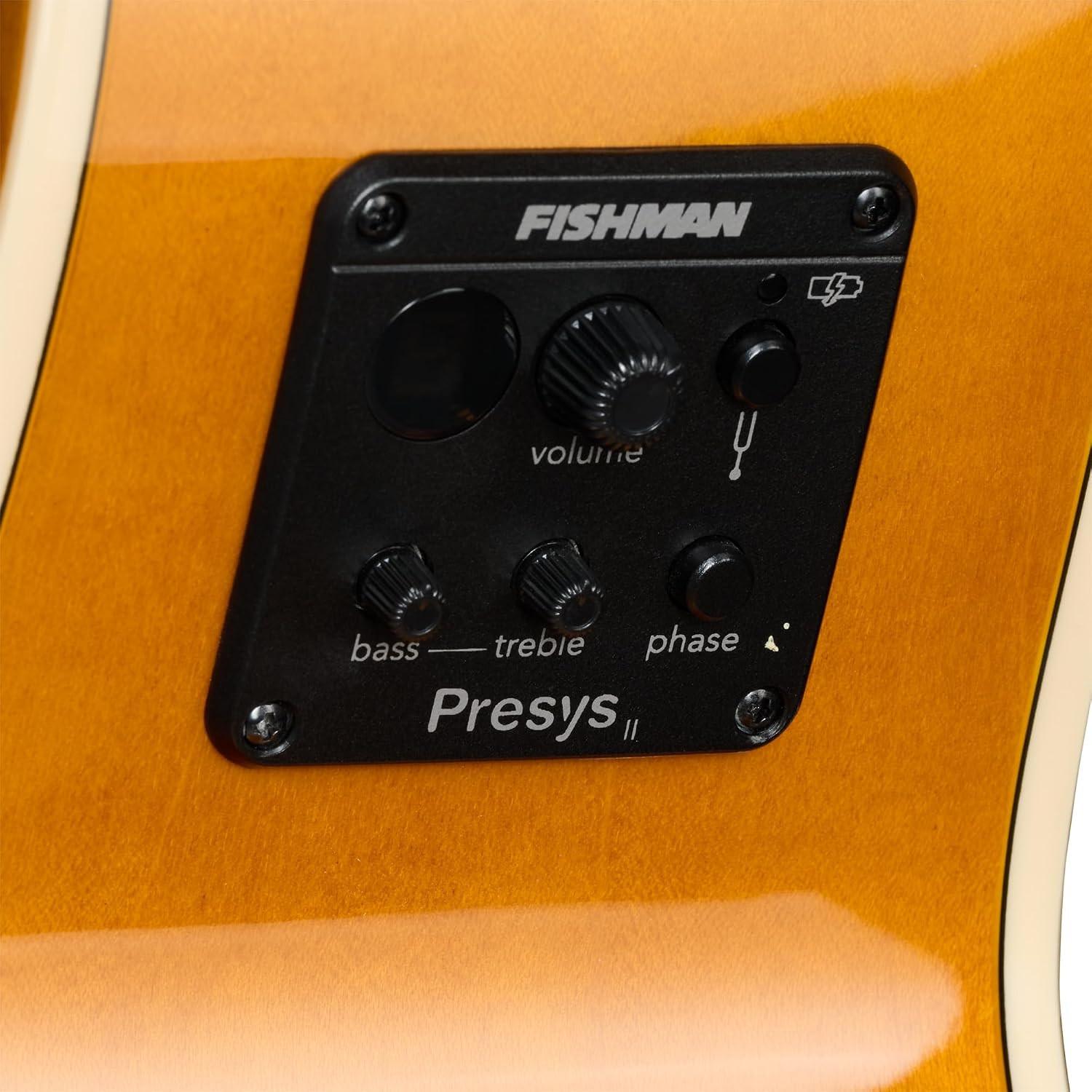

The Fishman S-Core under-saddle pickup and Fishman Presys II preamp accurately transfer the guitar's acoustic character into an amplified system. Side-mounted Volume, Bass, Treble and Phase controls allow the amplified sound to be adjusted for stage and other performance environments. The built-in tuner provides quick and practical tuning during performance. G

Gibson

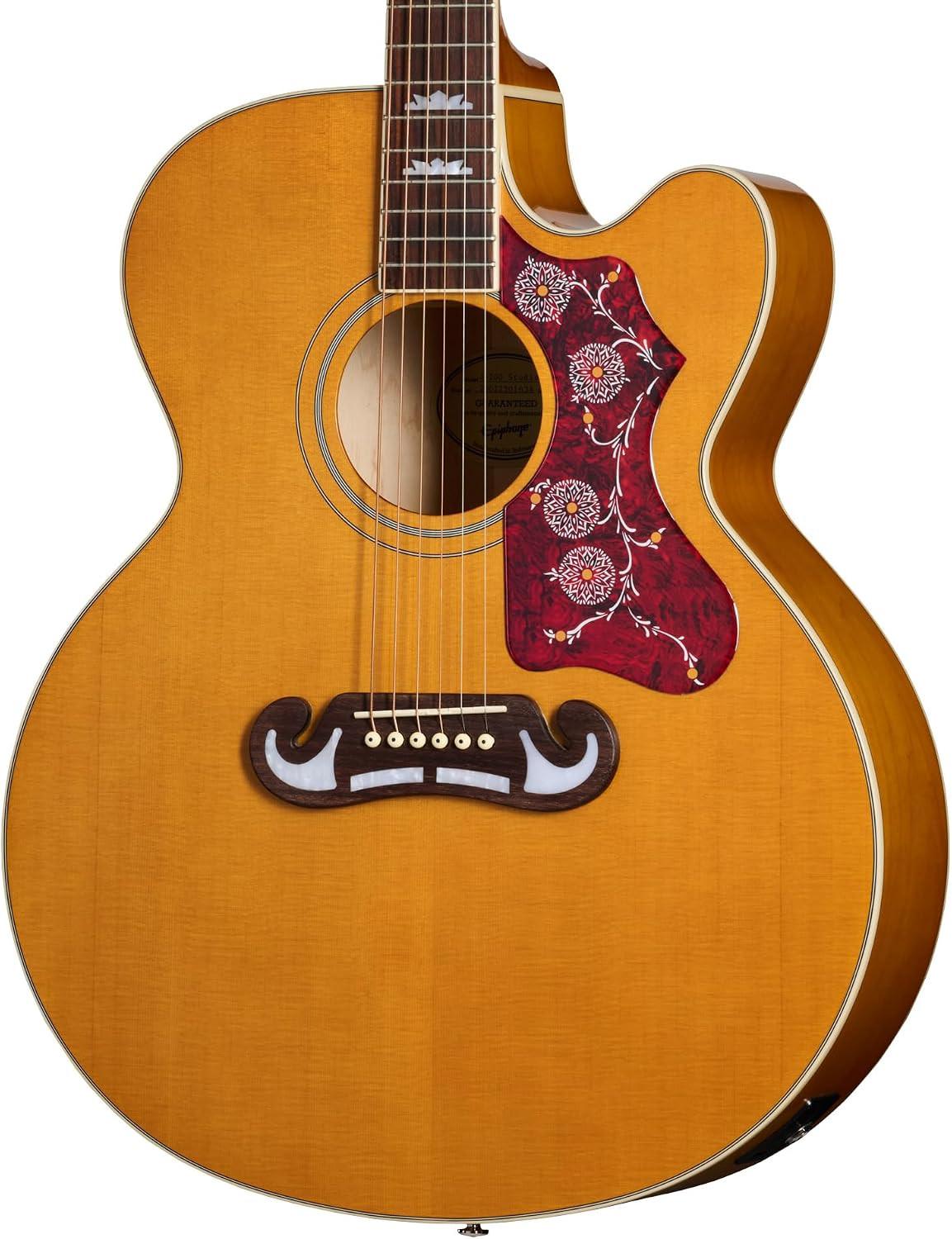

Classic J-200 Design

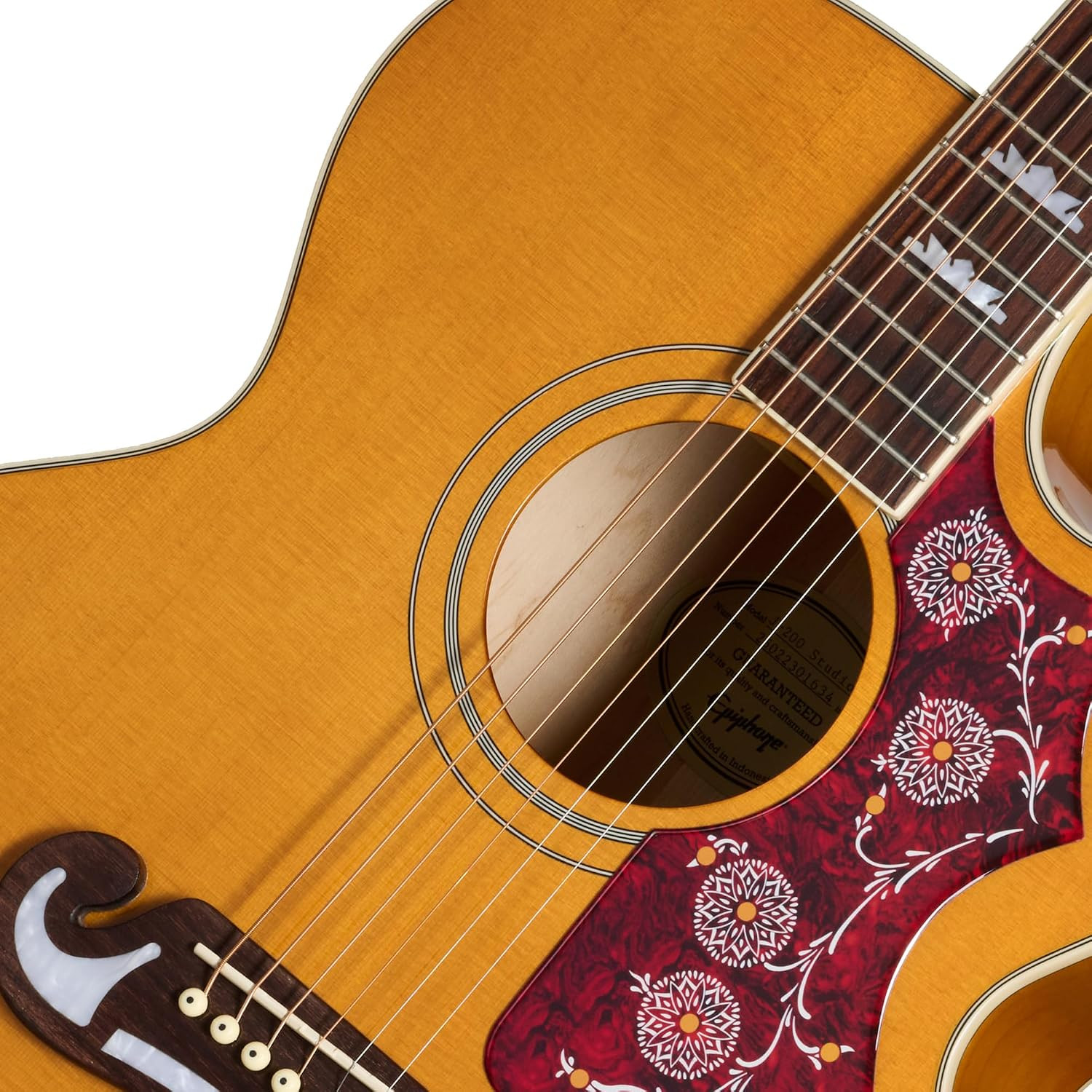

The Natural gloss finish highlights the natural appearance of the wood. The tortoise-colored J-200-style pickguard with two-color J-200 graphics, pearloid graduated crown inlays and J-200 Moustache bridge with pearloid inlays complete the guitar's classic visual character. Epiphone Deluxe tuning machines with Keystone buttons complement the instrument's vintage-inspired styling and functionality. G

Gibson

Comfortable Playability and Practical Setup

The cutaway body provides easier access to the upper frets. The 25.5" scale, 43.0 mm (1.69") nut width and 12" radius provide a comfortable and balanced playing feel. A standard gig bag is included. The pickup system requires a 9-volt battery, which is not included. G

Gibson

Technical Specifications

Product

• Product: Epiphone J-200 Studio EC, Natural
• Model: EASJ2CANNH1
• Guitar Type: Acoustic-Electric Guitar
• Body Shape: J-200
• Body Style: Jumbo / Super Jumbo
• Orientation: Right-Handed
• Color: Natural

Body

• Back: Layered Maple
• Sides: Layered Maple
• Top: Solid Spruce
• Body Material: Layered Maple
• Binding: 4-ply Top, Single-ply Back, Fretboard, and Headstock
• Body Finish: Gloss
• Body Construction: Cutaway

Neck & Fingerboard

• Neck Material: Mahogany
• Neck Construction: Glued In, Set Neck with Tapered Dovetail Joint
• Profile: 1960s SlimTaper™ D-shape
• Fingerboard Material: Rosewood
• Fingerboard Radius: 304.8mm / 12.0in
• Fret Count: 20
• Frets: Standard
• Inlays: Pearloid Graduated Crown
• Nut Material: Plastic
• Nut Width: 43.0mm / 1.69in
• Scale Length: 647.7mm / 25.5in

Electronics

• Pickup: Fishman S-Core Under-Saddle
• Preamp: Fishman Presys II
• Controls: Side-mounted Volume, Bass, Treble, Phase Switch, and Tuner
• Output Jack: Combination Battery Box and 1/4" Output Jack
• Tuner: Built-in electronic tuner
• Power: 9-volt battery required
• Battery: Not included

Hardware

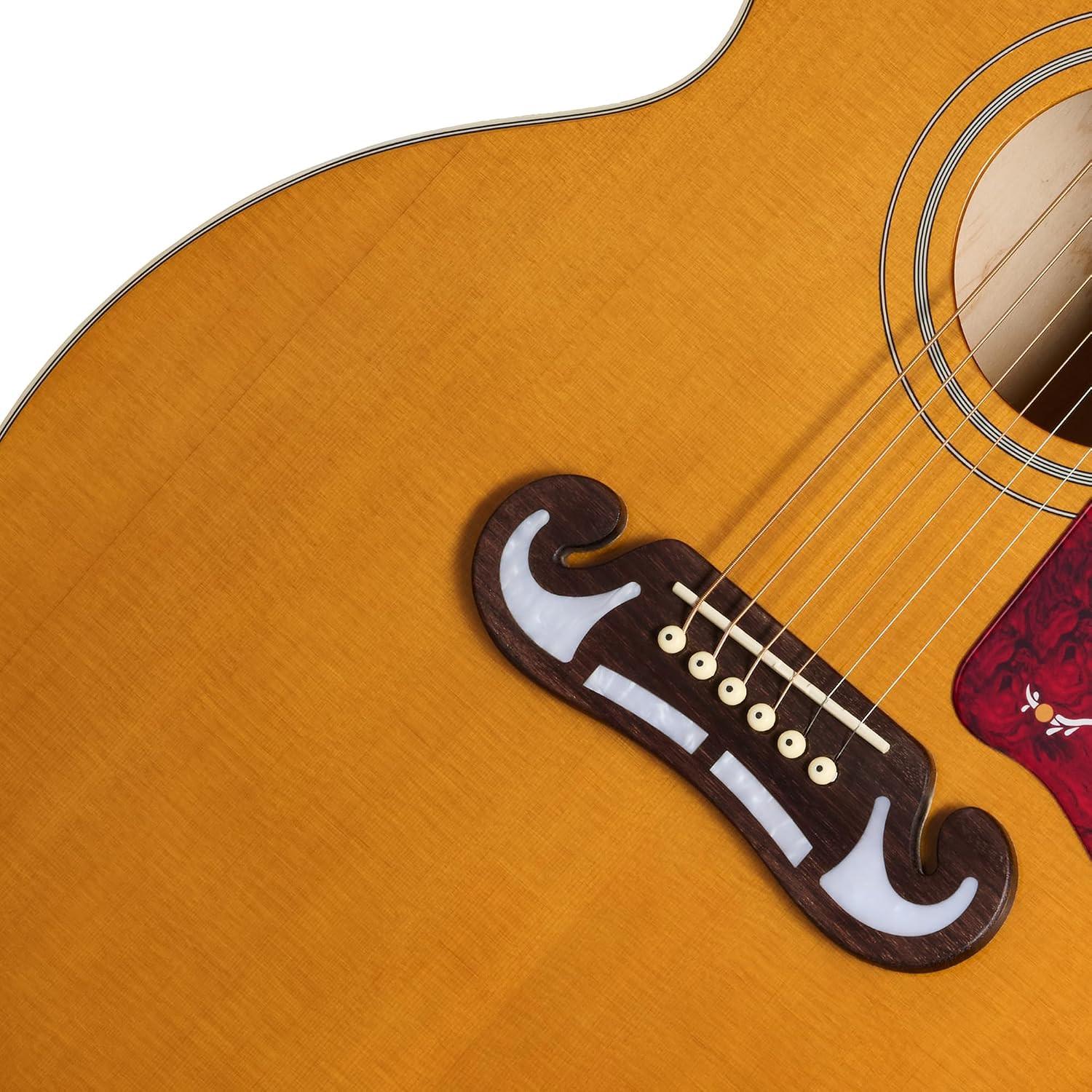

• Bridge: J-200 Moustache with Pearloid Inlays
• Bridge Pins: Ivory with Black Dot
• Saddle Material: Imitation Bone
• Pickguard: Imitation Tortoise, Epoxy-style, with 2-color J-200 Graphics
• Tuning Machines: Epiphone Deluxe with Keystone Button
• Hardware Finish: Nickel
• Tuner Plating: Nickel
• Strap Buttons: 2 - Bottom and Side of Heel
• Truss Rod: Dual Action
• Truss Rod Cover: 2-ply Black Bell, Studio

Other

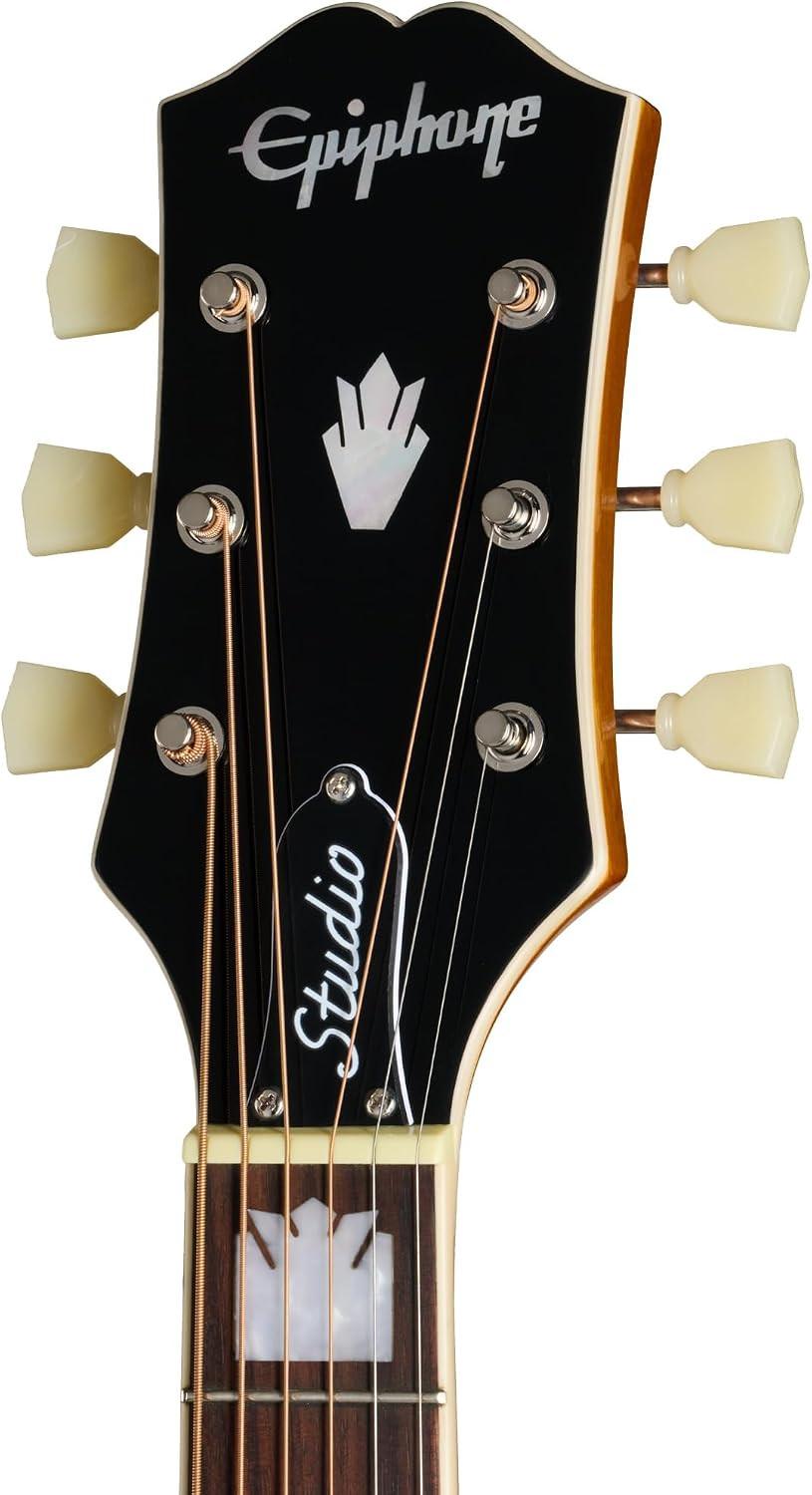

• Headstock: 60s Kalamazoo
• Headstock Inlay: Epiphone Logo and Gibson Crown in Mother of Pearl
• String Gauge: .012, .016, .024, .032, .042, .053
• Case: Standard Gig Bag
